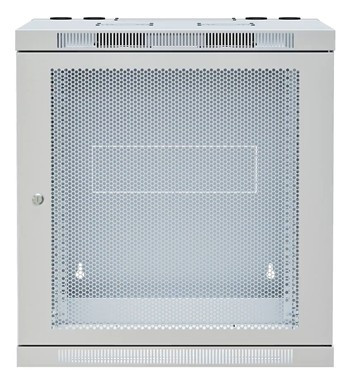

Ubiquiti - Rack da parete da 12 unità pre-assemblato con ventole integrate e pannelli rimovibili, progettato per facilitare l'accesso alle apparecchiature e per installazioni su piccola scala. Pannello frontale in metallo perforato
Codice: ART-225331 EAN: - MPN: UACC-Rack-12U-Wall-SW-P-EU
Scheda Tecnica
Scheda Tecnica
Dimensions
Packaging: 725 x 840 x 735 mm (28.5 x 33.1 x 28.9")
Rack: 600 x 700 x 639 mm (23.6 x 27.6 x 25.2")
Weight
Packaging: 31.8 kg (70.1 lb)
Rack: 25.8 kg (56.9 lb)
Enclosure Material
SPCC steel
Door/side panels: 1.2 mm (0.05")
Main body: 1.2 mm (0.05")
Posts: 2 mm (0.08")
Color
White
Treatment
Powder coating
Rack Features
U Height
12U
Rack Type
4 post, enclosed cabinet
Mounting Hole Type
Square
Adjustable Mounting Depth
Default 434 mm (17.1")
Max. 559 mm (22")
Adjustable pitch 25 mm (1")
Max. Weight Capacity
80 kg (176 lb)
Front Door
Perforated
Default left-hand outswing, reversible
Rear Door
Solid
Swing-out
Side Panels
(2) Solid, removable and lockable
Mounting
Wall mount
Fan Module
Yes
Acoustic Noise
≤ 50 dB(A) sound pressure level
Grounding Lugs
Yes
Cable Entry Opening
(1) Rear wall: 350 x 100 mm (13.8 x 3.9")
(2) Top: 235 x 62 mm (9.3 x 2.4")
(4) Top knockout: 35 mm (1.4")
(1) Bottom: 235 x 62 mm (9.3 x 2.4")
(4) Bottom knockout: 35 mm (1.4")
Security
(1) Front door lock
(1) Swing out door lock
(4) Side panel locks
(2) Keys
Standard
CE; EIA/ECA-310-E; RoHS
NDAA Compliant
Yes
