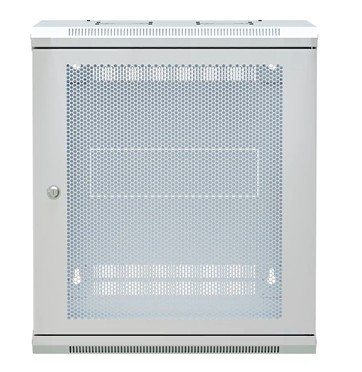

Ubiquiti - Rack da parete da 12 unità pre-assemblato con ventole integrate e pannelli rimovibili, progettato per facilitare l'accesso alle apparecchiature e per installazioni su piccola scala. Pannello frontale in metallo perforato. Profondità 45Cm
Codice: ART-225335 EAN: - MPN: UACC-Rack-12U-Wall-450-P-EU
Scheda Tecnica
Scheda Tecnica
Dimensions
Packaging: 580 x 675 x 735 mm (22.8 x 26.6 x 28.9")
Rack: 550 x 450 x 635 mm (21.7 x 17.7 x 25")
Weight
Packaging: 22 kg (48.5 lb)
Rack: 17.8 kg (39.2 lb)
Enclosure Material
SPCC steel
Door/side panels: 0.8 mm (0.03")
Main body: 0.8 mm (0.03")
Posts: 2 mm (0.08")
Color
White
Treatment
Powder coating
Rack Features
U Height
12U
Rack Type
4 post, enclosed cabinet
Mounting Hole Type
Square
Adjustable Mounting Depth
Default 283 mm (11.1")
Max. 305 mm (12")
Adjustable pitch 22 mm (0.09")
Max. Weight Capacity
50 kg (110 lb)
Front Door
Perforated
Default left-hand outswing, reversible
Side Panels
(2) Solid, removable and lockable
Mounting
Wall mount
Fan Module
Yes
Acoustic Noise
≤ 50 dB(A) sound pressure level
Grounding Lugs
Yes
Cable Entry Opening
(1) Rear wall: 350 x 100 mm (13.8 x 3.9")
(1) Top: 336.5 x 52.5 mm (13.2 x 2.1")
(1) Bottom: 336.5 x 52.5 mm (13.2 x 2.1")
Security
(1) Front door lock
(4) Side panel locks
(2) Keys
Standard
CE; EIA/ECA-310-E; RoHS
Supported Devices
Compatible with Ubiquiti rack-mount devices up to 325 mm in depth.
Note: 325 mm devices can be installed when the mounting depth is set to 305 mm (max), but DC power backup is not supported due to limited rear-side clearance.
NDAA Compliant
Yes
