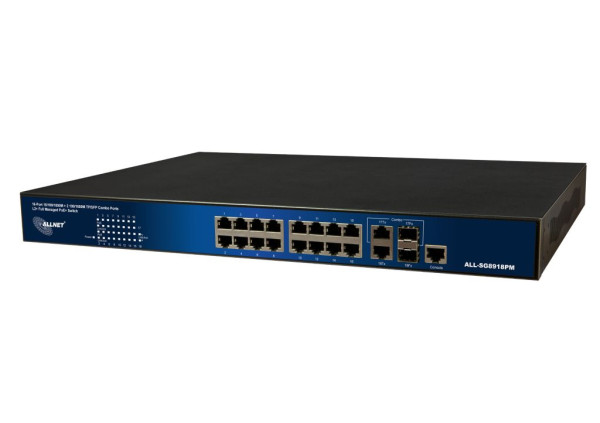

ALLNET ALL-SG8918PM Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) 1U Black network switch
Code: ART-98721 4038816061614 ALL-SG8918PM
ALLNET ALL-SG8918PM. Switch type: Managed, Switch layer: L2. Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000), Console port: RJ-45, Copper ethernet cabling technology: 10BASE-T,100BASE-TX,1000BASE-T. Networking standards: IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE.... MAC address table: 8000 entries, Switching capacity: 36 Gbit/s, Throughput: 26784 Mpps. Security algorithms: 802.1x RADIUS,HTTPS,SSH,SSH-2,SSL/TLS, Authentication: MAC-based authentication, Port-based authentication, Web-based authentication
Tech Detail Table
Tech Detail Table
| 10G support | N |
| AC input frequency | 50/60 |
| AC input voltage | 100-240 |
| Access Control List (ACL) | Y |
| Authentication | MAC-based authentication, Port-based authentication, Web-based authentication |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Broadcast storm control | Y |
| Certification | VCCI, CE, FCC Class A |
| Colour of product | Black |
| Combo SFP ports quantity | 2 |
| Console port | RJ-45 |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX,1000BASE-T |
| Depth | 331 mm |
| Flow control support | Y |
| Form factor | 1U |
| Full duplex | Y |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Height | 44 mm |
| IGMP snooping | Y |
| Jumbo frames | 9600 |
| Jumbo frames support | Y |
| LED indicators | Y |
| Link aggregation | Y |
| Loop protection | Y |
| MAC address table | 8000 entries |
| Management protocols | SNMP/WEB/SSH/TELNET, RMON |
| Multicast support | Y |
| Networking standards | IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3at,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| Number of queues | 8 |
| Number of VLANs | 4096 |
| Operating relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 45 °C |
| Packet buffer memory | 0.5 MB |
| Port mirroring | Y |
| Port-based VLAN | Y |
| Power consumption (typical) | 15 W |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 16 |
| Private VLAN | Y |
| Quality of Service (QoS) support | Y |
| Rack mounting | Y |
| Rate limiting | Y |
| Security algorithms | 802.1x RADIUS,HTTPS,SSH,SSH-2,SSL/TLS |
| Spanning tree protocol | Y |
| SSH/SSL support | Y |
| Stacked VLAN | Y |
| Switch layer | L2 |
| Switch type | Managed |
| Switching capacity | 36 Gbit/s |
| System event log | Y |
| Tagged VLAN | Y |
| Throughput | 26784 Mpps |
| Total Power over Ethernet (PoE) budget | 300 W |
| VLAN support | Y |
| Web-based management | Y |
| Weight | 2.5 kg |
| Width | 440 mm |
