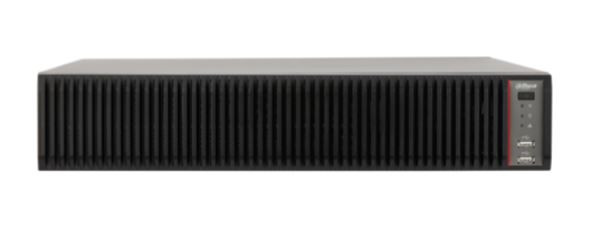

Dahua Europe IVSS7008-1T network video recorder 2U Black
Code: ART-174062 - IVSS7108-2M
- Intel dual-core processor
- Max 400Mbps incoming bandwidth
- 128 Channel IP video access
- Up to 4 Channel video stream face recognition
- Up to 10 Channel picture stream face recognition
- Regular/stranger mode
- Search by image
- Face database management
- Supports RAID 0/1/5/6/10
- 3HDMI/2VGA video output
- Max 400Mbps incoming bandwidth
- 128 Channel IP video access
- Up to 4 Channel video stream face recognition
- Up to 10 Channel picture stream face recognition
- Regular/stranger mode
- Search by image
- Face database management
- Supports RAID 0/1/5/6/10
- 3HDMI/2VGA video output
Tech Detail Table
Tech Detail Table
| AC input frequency | 50 - 60 Hz |
| AC input voltage | 100 - 240 V |
| Alarm input channels | 16 |
| Alarm output channels | 8 |
| Audio RCA inputs | 1 |
| Audio RCA outputs | 2 |
| Built-in processor | Y |
| Certification | CE\nFCC\nUL |
| Depth | 446.2 mm |
| eSATA | Y |
| Ethernet LAN (RJ-45) ports | 4 |
| HDMI output | Y |
| HDMI ports quantity | 3 |
| Height | 90.8 mm |
| Input bandwidth | 320 Mbit/s |
| Maximum resolution | 3840 x 2160 pixels |
| Maximum storage capacity | 10 TB |
| Number of simultaneously playbacked channels | 16 channels |
| On Screen Display (OSD) | Y |
| Operating temperature (T-T) | 0 - 45 °C |
| Processor cores | 2 |
| Processor manufacturer | Intel |
| Product colour | Black |
| Rack capacity | 2U |
| Rack mounting | Y |
| RAID support | Y |
| Recording modes | Schedule |
| RS-232 interface | Y |
| RS-485 ports | 1 |
| Storage temperature (T-T) | -20 - 70 °C |
| Supported resolutions | HDMI1/2/3 : 3840 × 2160 , 1920 × 1080 , 1280 × 1024, 1280 × 720\n\nVGA1/2 : 1920 × 1080 , 1280 × 1024, 1280 × 720 |
| USB 2.0 ports quantity | 4 |
| VGA (D-Sub) output ports | 2 |
| Video input channels | 128 channels |
| Weight | 8.55 kg |
| Width | 439.7 mm |
