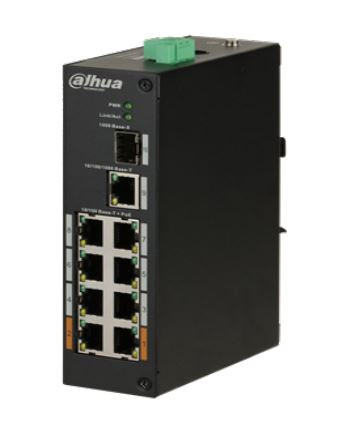

Dahua-PFS3110-8ET-96-V2-Dahua Switch Industriale 8*10/100 PoE + 1*Giga HiPoE + 1*1000SFP
Codice:
ART-171264
EAN:
-
MPN:
PFS3110-8ET-96-V2
Features
· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply standard.
Port 1 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup
· Layer two Hardened PoE switch
· Supports PoE power management
· MAC auto learning and aging, MAC address capacity is 8K
· Conforms to IEEE802.3af and IEEE802.3at power supply standard.
Port 1 supports Hi-PoE 60W power supply
· Supports IEEE802.3, IEEE802.3u, IEEE802.3ab/z and IEEE802.3X standards
· Wide working temperature design: -30°C~ 65°C
· Supports dual power backup
Richiedi Info
Vuoi ricevere maggiori informazioni su questo prodotto? Contattaci subito!
Scheda Tecnica
Scheda Tecnica
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Colour of product | Black |
| DC voltage range | 48 - 57 V |
| Depth | 100 mm |
| Fast Ethernet (copper) ports quantity | 8 |
| Flow control support | Y |
| Forwarding rate | 4.17 Mpps |
| Gigabit Ethernet (copper) ports quantity | 2 |
| Height | 42 mm |
| MAC address table | 8000 entries |
| Manual | Y |
| Networking standards | IEEE 802.3af,IEEE 802.3at |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | -30 - 65 °C |
| Packet buffer memory | 1 MB |
| Power connector | DC-in jack |
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) power per port | 30 W |
| Stackable | Y |
| Surge protection | Y |
| Switch type | Unmanaged |
| Switching capacity | 7.6 Gbit/s |
| Total Power over Ethernet (PoE) budget | 96 W |
| Weight | 540 g |
| Width | 150 mm |
